Article No :  499.21.224

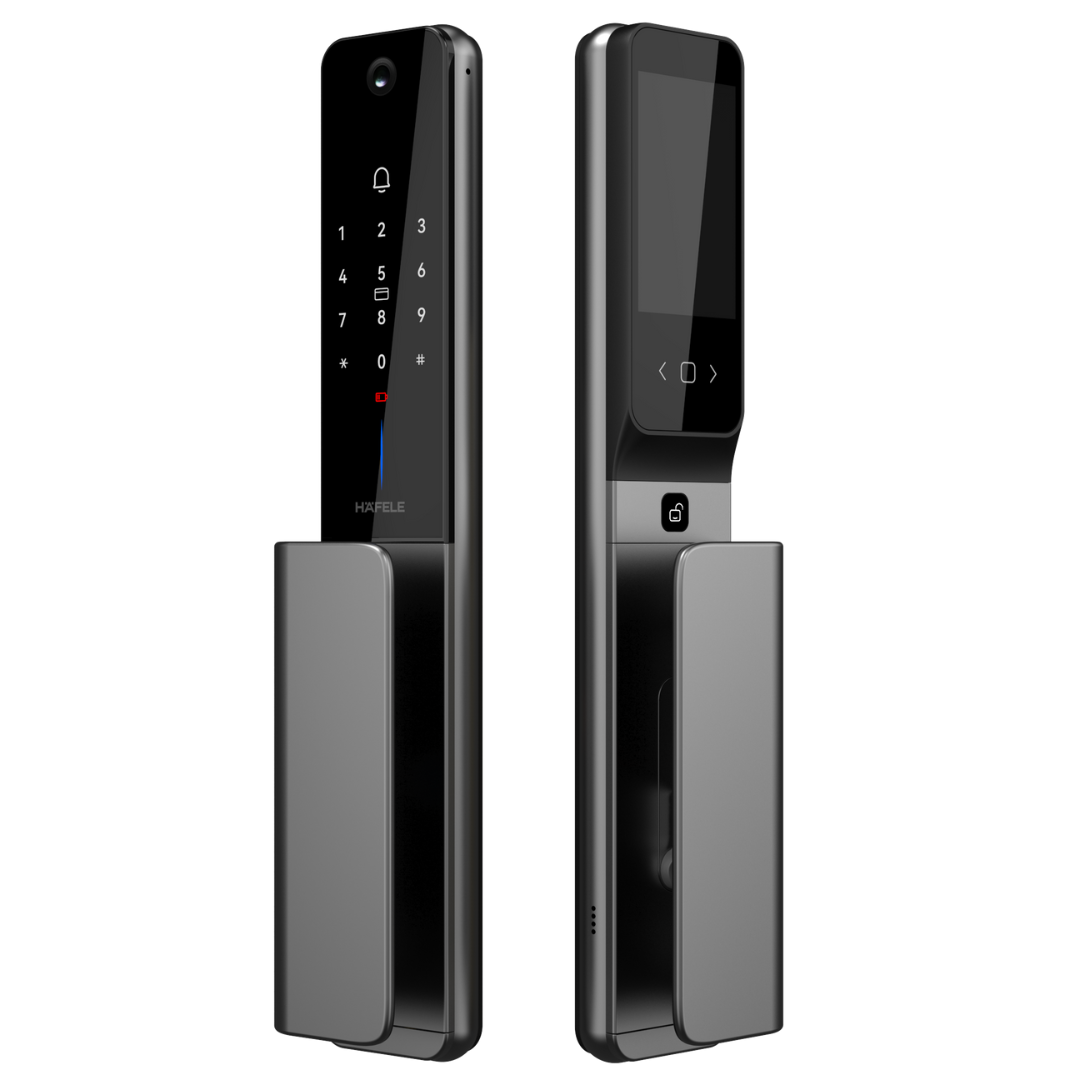

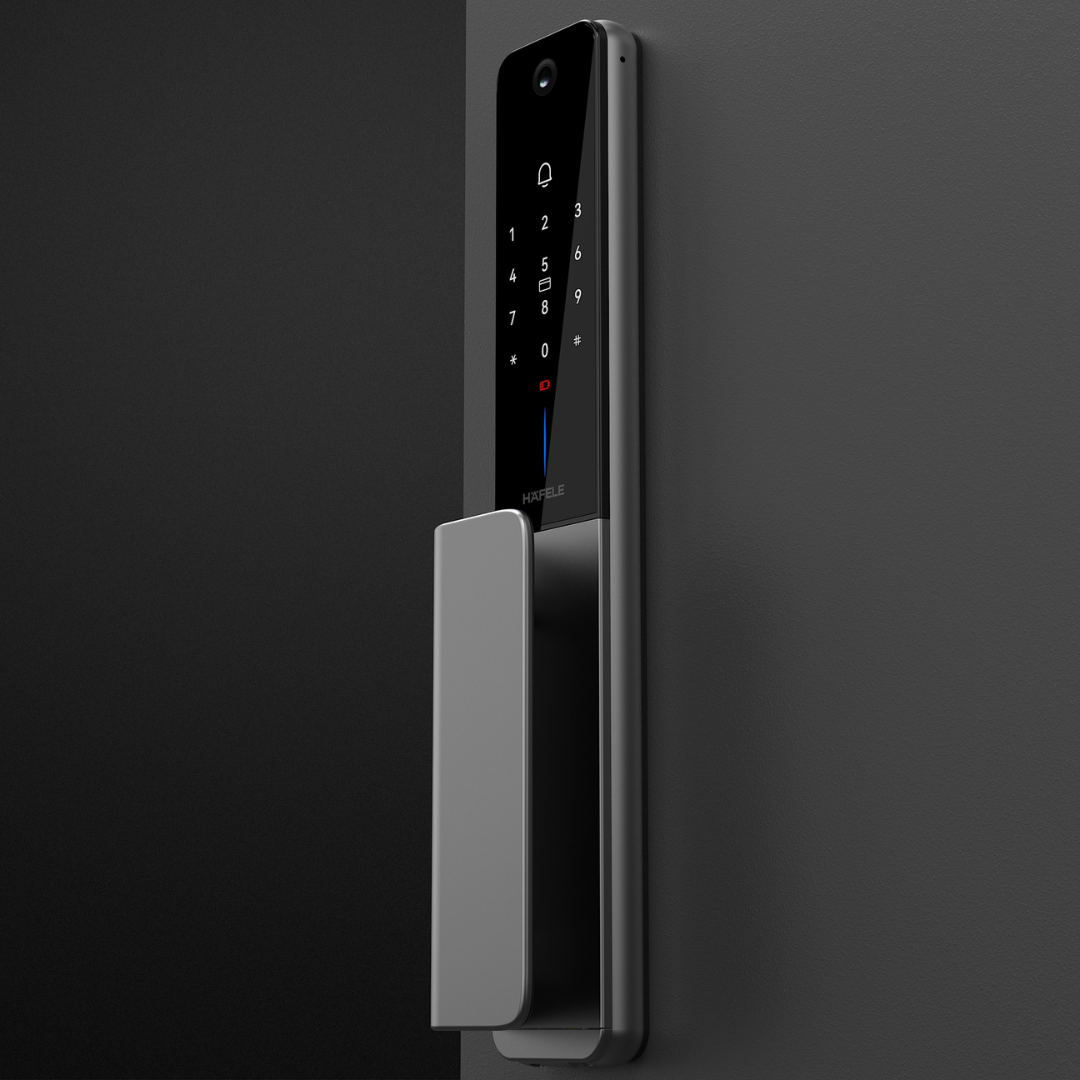

Horizon Digital Lock

Tax included.

The Horizon Digital Lock takes a composed approach to modern security. With a slim, linear design, it integrates effortlessly into contemporary architecture. Designed to support fluid movement in and out of the home, Horizon combines thoughtful functionality with a calm, balanced aesthetic.

Colour: Black Matt
Horizon Digital Lock
Colour: Black Matt
Data Security

🔒 We never share your details with third parties without your consent

Häfele Shopify site banner showcasing hardware, lighting, and surface design
Related categories
Digital Furniture Locks Digital Furniture Locks
Features

User Access Rights Admin
User
Guest
Access Modes Face recognition (100 users)
Capacitive fingerprint (100 users)
keypad/password (100 users)
RFID (100 users)
Built-in Wi-Fi key**
(Remote Access and adding and managing users and checking audit trails)
compatible with wired video door phones
(with I/O module)
and mechanical key (2 keys).
Smart Technologies Smart Access
Smart Password
Smart Freeze
Smart Voice
Locking Modes Auto Locking
Passage Locking
Privacy Locking
Double Authentication Mode
Types of Password Permanent: Provides the Admin user uninterrupted exclusive access
Dynamic: Allows multiple entries and exits for one-time visitors for a period of 5 minutes
Period: Grants temporary access to guests over a set period.
Alarms and Other Features Digital Door Viewer
(Allows viewing your visitor before opening the door)
Li-Ion Battery System
(Offers long lasting operations)
Automatic Mortise Lock
(Automatically locks the electronic mortise lock and indicates whether the door is closed or not)
Door Open Alarm
(Alerts if the door is not properly closed and the bolts are not able to auto-lock due to obstruction from the door frame)
Panel Lighting
(Seamless indication of current lock status and enables operations in the dark)
Loitering Detection
(Sends picture alerts via mobile app if someone stands in front of your door for some time)
Video Door Bell
(Sends video call to your mobile app using Wi-Fi when the visitor presses the bell button)
Intrusion Alarm
(Sounds alarm for 120 seconds if any mechanical tampering is done on the lock)

Technical Details

EXTERIOR AND INTERIOR LOCK BODY
Material Aluminium Alloy and Tempered Glass
Finish Black and Grey
Keypad Type Capacitive Touch
Alarms Intrusion / break-ins with periodic beeps on the lock
Status Indication Low Battery
Operational Features Panic exit by simply pulling the lever knob from inside,
Non-handed operation (DIN / ANSI right and left),
Audit trails (up to 30,000 records)
Battery In-built 4200 mAh rechargeable Li-Ion battery,
Jump start (5V power bank through USB-C port)
Voice Guidance Language English (Male or Female voices)
Ambient Operating Temperature Range -20°C to +70°C
Relative Humidity Range 40% to 80%
Ingress Protection Exterior Lock Panel: IP65
Interior Lock Panel: IP53
Dimensions (H × W × D) Exterior Lock Panel: 404 × 69 × 22.5 mm
Interior Lock Panel: 404 × 69 × 29.5 mm
Door Thickness 35 – 110 mm

Accessories
I/O Module for Video Door Phone Connection 912.20.658
